(MC 021) Shallow Water Floating Wind Turbine Concept

Turbine Characteristics:

Power,  2 MW
Tower height,  80 m
Rotor diameter,  77.5 m
Weight of the tower,  155 t
Nacelle weight,  55 t
Weight of a single blade,  6.6 t
Total turbine weight  ~230 t

Pontoon main characteristics:

Length overall, Loa = 30 m
Breadth, B =  30 m
Depth, D = 7 m
Draught, d = 0.922 m
Total weight of the structure  ~600 t

Built: Not built
Number of ships built: Not built
Disciplines: Steel, Outfit, Ship theory

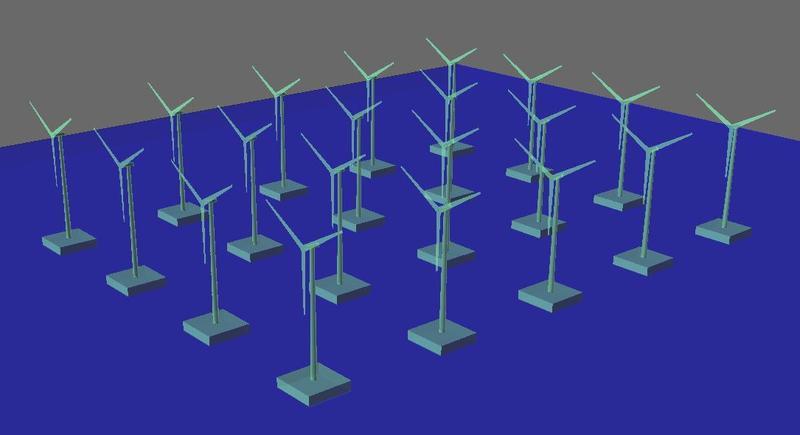

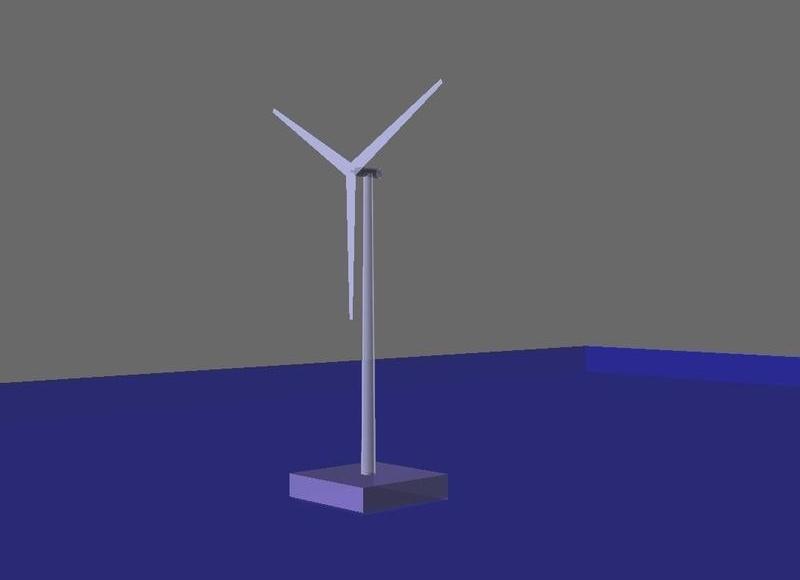

3D model made using Rhinoceros and ShipConstructor
