Small shrimp seiner ASMAK – whole project.

Main Characteristics:

Length overall,  Loa = 24.97 [m]
Breadth, B = 6.70 [m]
Depth, D = 3.93 [m]
Design draught, d = 3.25 [m]

Owner:  National Fishing Company,

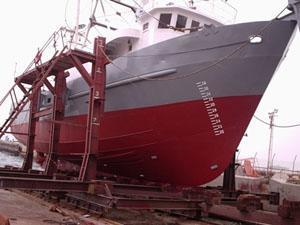

Shipbuilder: MAK International, Kuwait (2004)
Built: Kuwait
Number of ships built: 1

Disciplines: Ship Theory, Steel, Structures, Outfitting

Short explanation: We made the design upon an existing ship, taking the form from docked ship. We needed to replicate the characteristics of the existing seiner even if we could make it better. The second version of the ship (the model in CATIA) is much more updated.

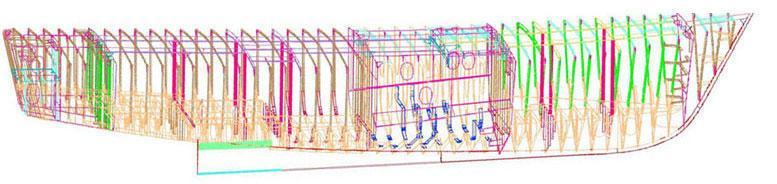

3D Model made using Rhinoceros 3 and Ship Constructor
Ship Constructor modules used:
Ship Cam and Structure, Plate Nest, Manager.

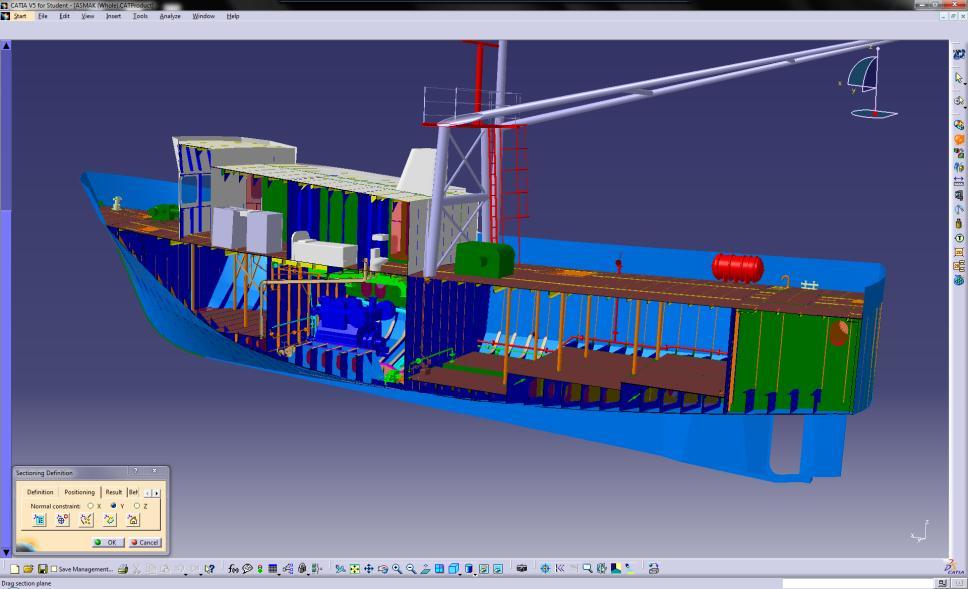

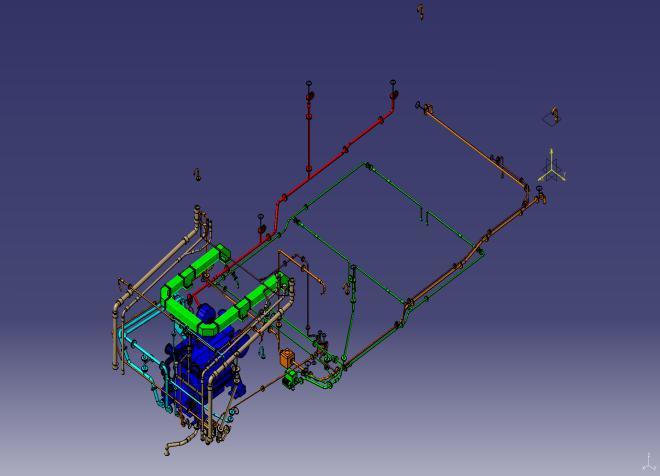

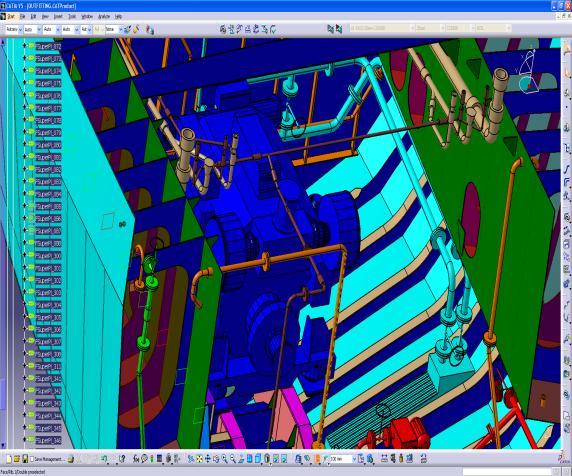

The same project is also modeled in CATIA V5
