(MC017) Off-shore Platforms

The whole system consists of several small offshore platforms connected by covered bridges.
We designed two of them – CTP and PJM. CTP – it is a platform for preparing of crude oil for transportation.  PJM is an accommodation platform for staff of 125 persons. Both of them consist of two base blocks and upper platform.

Main characteristics:

BASE BLOCK CTP     UPPER STRUCTURE CTP
Height 15,50 m   Height 32,00 m
Breadth 24,50 m   Breadth 45,00 m
Length 34,00 m   Length 88,00 m
Full weight (2 blocks) 8280 t   Full weight 12000 t

BASE BLOCK PJM     UPPER STRUCTURE PJM
Height 15,50 m   Height 30,00 m
Breadth 12,50 m   Breadth 25,00 m
Length 26,00 m   Length 35,00 m
Full weight (2 blocks) 3980 t   Full weight 1240 t

Owner:
Russia
Built:
Not built

Ship design work done:
Concept design and Preliminary design stage of the platforms for the Caspian Sea.

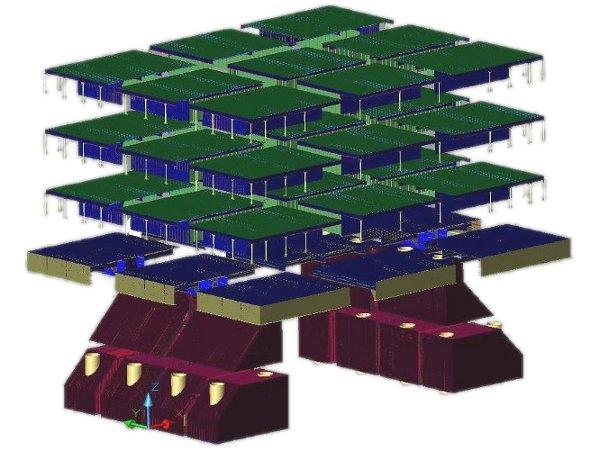

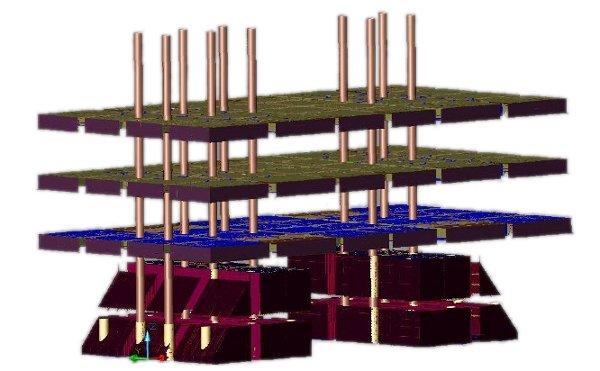

3D model using ShipConstructor 2005.
