(MC 017) Off-shore Platforms



The project consists of several small off-shore platforms, connected by means of covered bridges.

We designed two of them – CTP and PJM:

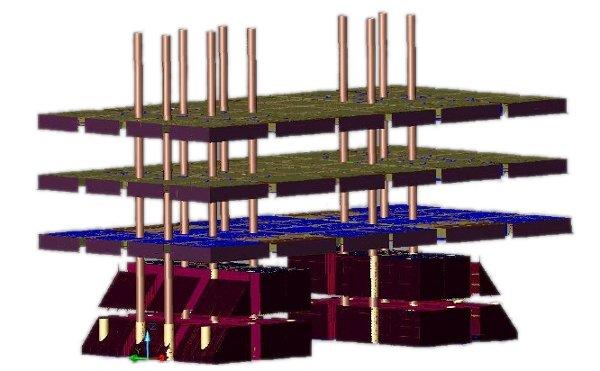

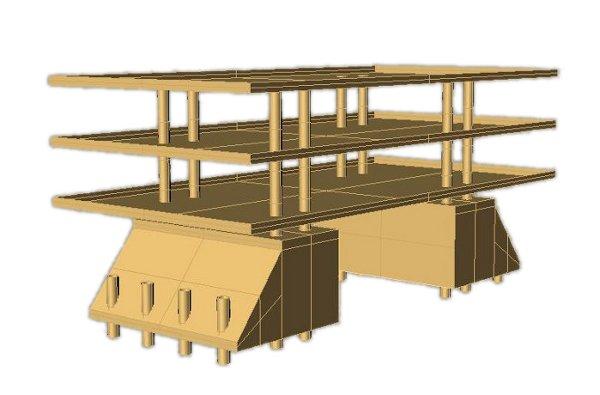

CTP – it is a platform for preparing of crude oil for transportation. It consists of two base blocks and upper platform

Base block CTP                Upper structure CTP

Height     – 15.50m            Height     – 32.00m

Breadth    – 24.50m            Breadth    – 45.00m

Length     – 34.00m            Length     – 88.00m

Full weight (2 blocks) -8280t    Full weight     -12000t

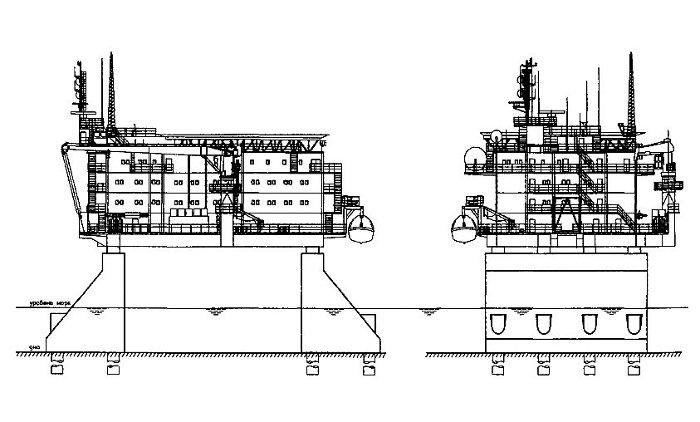

PJM – module for Accommodation of the staff is intended for about 125 persons .
It consists of two base blocks and upper platform

Owner:  Russian

Built:  Not built
Disciplines:  Steel





CTP – it is a platform for preparing of crude oil for transportation. It consists of two base blocks and upper platform

PJM – module for Accommodation of the staff is intended for about 125 persons . It consists of two base blocks and upper platform
