(MC021) Shallow Water Floating Wind Turbine Concept



Main Characteristics:
Power   2 MW
Tower height   80 m
Rotor diameter   77.5 m
Weight of the tower   155 t
Nacelle weight   55 t
Weight of a single blade   6.6 t
Total turbine weight   ~230 t

Pontoon main characteristics:

Length overall  L = 30 m
Breadth  B =  30 m
Depth  D = 7 m
Draught T = 0.922 m
Total weight of the structure   ~600 t

Order: Own project
Built: Not built

Ship design work done:

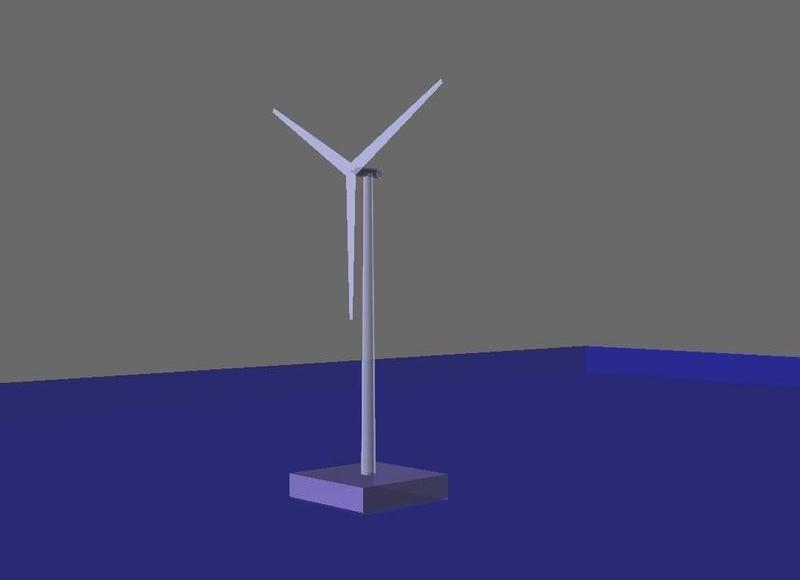

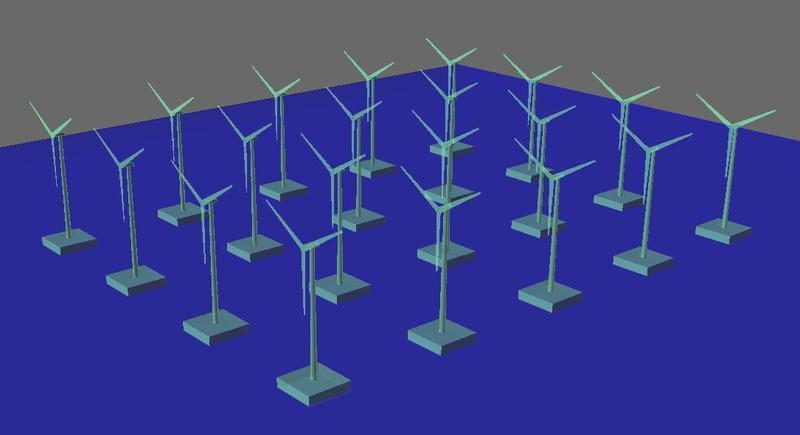

Floating Wind Turbine to be moored in the Northern part of Bulgarian Black Sea Coast. Concept design and Preliminary design. 3D model made using Rhinoceros and ShipConstructor 2008. Seakeeping calculations done in BSHC (www.bshc.bg).
